- Conformity to Community Directives: 2014/35/UE 2006/42/CE
- Conformity to Standards: EN 60204-1 EN 60947-1 EN 60947-5-1 EN 60529 ISO 13850.
- Storage ambient temperature: -40°C/+70°C
- Operational ambient temperature: -25°C/+70°C
- Protection degree: IP 65
- Insulation category: Class II
- Cable entry: rubber cable sleeve (Ø 14÷26 mm)
- Operating positions: any position
- Markings and homologations: CE, EAC
- Utilisation category: AC 15
- Rated operational current: 1.9 A
- Rated operational voltage: 380 Vac
- Rated thermal current: 10 A
- Rated insulation voltage: 500 Vac
- Mechanical life: 1×106 operations
- Connections: screw-type terminals
- Wires: 1×2.5 mm², 2×1.5 mm² (UL – (c)UL: use 60°C or 75°C copper (CU) conductor and wire 16-18 AWG)
- Tightening torque: 0.8 Nm
- Markings and homologations: CE cULus
Description

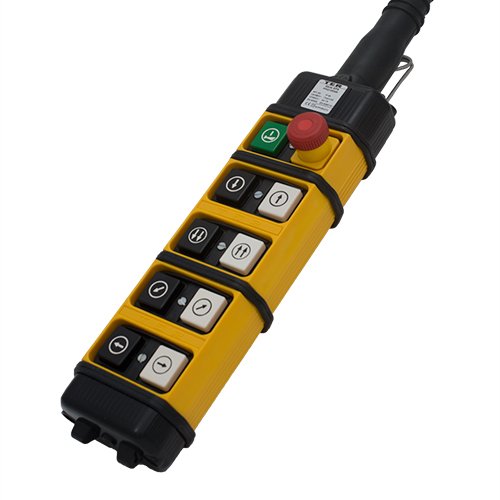

Pendant station for auxiliary control, sturdy and reliable, designed for heavy industry. Modular enclosure with actuators arranged on a double row to pair opposite functions and keep size compact.
Features
- Modular enclosure with actuators placed on a double row to enable grouping of a large number of functions in a single control.
- Rectangular pushbuttons in thermoplastic material or rubber pushbuttons with symbol disks to ensure protection against dust.
- The emergency stop mushroom pushbutton complies with standard ISO 13850.
- Mechanical life of switches: 1 million operations.
- IP protection degree: SPA is classified IP65.
- Extreme temperature resistance: -25°C to +70°C.
- All materials and components used are wear resistant and guarantee protection of the unit against water and dust.
Options
- Available in configuration from 2 to 20 actuators, arranged on a double row.
- One or two speed switches with NO or NC contacts.
- Double switches with mechanical interlock to prevent simultaneous operation of opposite functions.
- Wide range of actuators: pushbuttons, selector switches and key-selector switches, pilot lights, impulse or latched mushroom pushbuttons with rotation release.
Certifications
- CE marking and EAC certification.
