Fall Arrest Systems

A variety of Fall Arrest Track designs to suit all applications

Download our brochure

View our full range of Fall Arrest Systems

Rigid Rail Fall Arrest Systems

Industrial fall restraint land yards created to protect workers at heights and reduce uncontrolled access

Met-Track® fall arrest rigid rail is a horizontal system that comprises a permanently installed anchorage rail and free running connectors housed with the enclosed profile. Available in either a standard profile or reinforced configurations for up to eight users or spans of 12 metres. Utilising the correct design layout, Met-Track® offers safe access to high level work areas for fall arrest and rescue situations.

Standard Profile Designs

Met-Track® Rail OnlyMet-Track® Reinforced RailMet-Track® Reinforced DUALMet-Track® AL360Met-Track® AL700

Bespoke Arrest Systems

The Met-Track® rigid rail system comprises a permanently installed rigid anchorage rail and free running anchorage connectors housed within the enclosed profile. Available in either standard or reinforced configurations Met-Track® can be used for up to eight users with supports of up to 12 metres.

Reduced Free Fall Distance

The Met-Track® rigid rail fall arrest system offers many advantages over traditional wire based systems, one of which is that in the event of the fall the profile will not stretch, unlike its wire alternative. This minimises the fall distance which in turn further reduces the likelihood of injury from a fall. These are important factors that must be considered when selecting fall arrest systems including the fall arrest equipment, ladders and all other fall arrest devices. Unlike wire systems the Met-Track® fall arrest system can be configured for self-rescue, accompanied descent or remote rescue arrangements.

from Metreel
from Metreel

Modular Configuration

A further benefit of the Met-Track® rigid rail systems is the ability to have a multiple rail configuration, allowing users the ability to pass one another whilst carry out work. Traditional system prevent this cross over which reduces the efficiency of carrying out the required task meaning the users may spend more time waiting for other operators to complete their work. Utilising the correct design layout, Met-Track® offers safe access to high-level work areas that would normally be classed as high risk. As a preference Met-Track® should be installed in a fall restraint configuration to minimise the possibility of a fall. In circumstances that do not allow for fall restraint, Met-Track® can be installed to provide workers with the ultimate fall arrest protection.

For architectural applications the Met-Track® can be incorporated into the structural design allowing it to be concealed within areas such as the eaves of a building, ensuring that the overall aesthetics are intact.

Download our brochure

Take a look at our brochure today and find out more about our products and fall arrest systems.

Key Features

    • Less fall clearance
    • Longer span distances between supports
    • Reduced risk of secondary fall injuries
    • Safer work for multiple people
    • System and components require very little maintenance
    • Easy to install and replace
    • Components are available in a variety of finishes, including passivated, galvanised, powder-coated or stainless
from Metreel
from Metreel

Free movement for multiple users with bypass capability

Trolley movement on the Met-Track® rigid rail systems is FLUID! The trolley moves when you move! A user doesn’t have to wrestle the trolley over and through intermediate supports.

Utilising our DUAL profile, or fitting single rails close to each other, users have the ability to cross each other in complete safety whilst carrying out their work at the various locations.

We also have a range of fall restraint systems to suit your needs too.

Call us today on 0115 932 7010 for advice and help with your fall arrest needs.

System Types

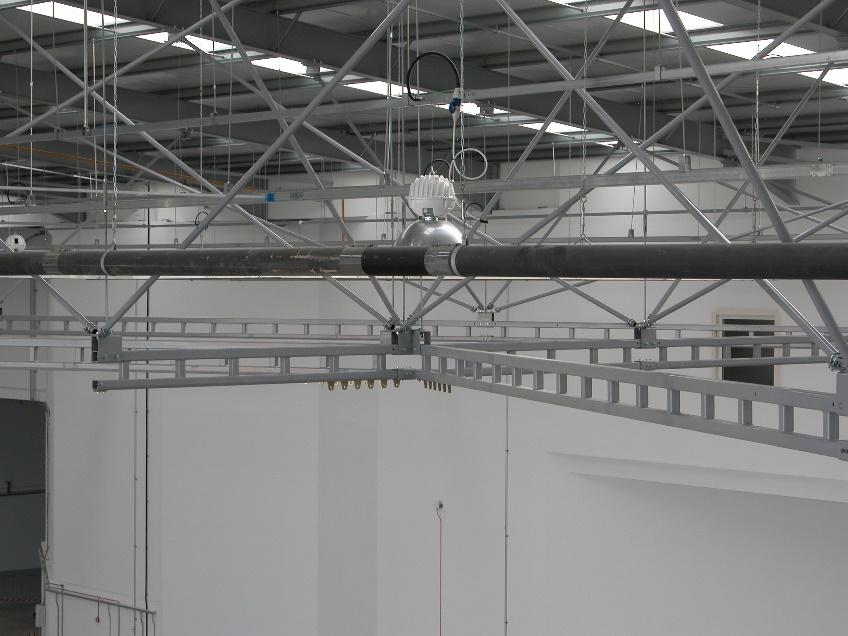

Ceiling-Mounted Monorails

When floor space is at a premium, Met-Track ® rigid rail systems provide a permanent fall arrest solution without the need for floor-mounted structures leaving the floor area free for the purposes. Ideal for production and warehouse facilities, vehicle loading and unloading, industrial cleaning and maintenance.

from Metreel
from Metreel

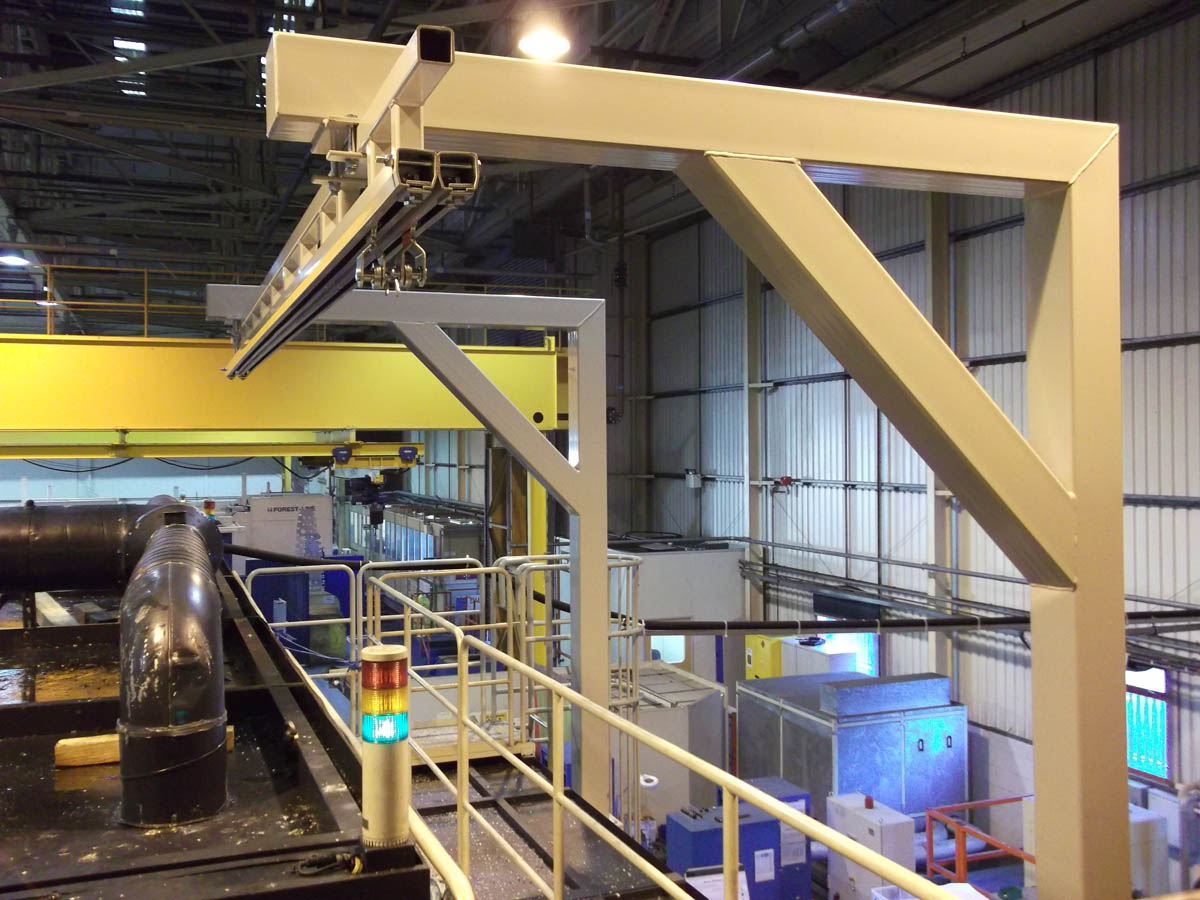

Free-Standing Monorails

Met-Track® free-standing monorail systems provide independent, permanent fall arrest solutions over long spans in areas where there are no existing support structures. These can be configured as cantilever arms, T-frame structures or goal post types structures which span the complete access area.

Swing Arm Systems

Met-Track® rigid rail swing arm systems typically provide a permanent fall arrest solution for areas where overhead cranes and fall arrest systems share the same space. Swing arm systems provide circular or semi-circular coverage within a limited footprint and when not is use can be moved out of the way so as not to cause an obstruction.

Combine the swing out arms and a simple monorail to combine a complete foldaway system. These can be supplied as independent floor mounted systems or can be mounted to existing columns or walls. Motorised arm rotation is also available and generally required on longer/multiple bay systems.

from Metreel
from Metreel

Travelling Bridges

Met-Track® rigid rail travelling bridge systems are available as ceiling-mounted or free-standing configurations. Ceiling-mounted systems are mounted to existing steelwork such as roof trusses to leave floor spaces free from additional support steelwork. Floor-mounted systems maybe preferred if floor space is available or ceiling support is not possible. Multiple bridges can be supplied for both ceiling and floor-mounted systems offering fall protection to multiple users from the same structure.
